18'' Deep 24'' Wide Undercounter ADA Height Drawer Refrigerator - ASDR2414PNR Summit

Regular price
$2,590.99
Regular price
$0.00
Sale price
$2,590.99
  • EXCLUSIVE: $100 Visa Gift Card w/ purchase
  • FREE FAST Shipping
Earn 1295 Reward Points. Learn More...
Order Now  to get it by Monday, Dec 23
Please allow 1-4 day(s) for processing
Details
  • SKU: ASDR2414PNR
  • Brand: SUMMIT APPLIANCE
  • Type: REFRIGERATION
  • Availability: In Stock
Description

18'' Deep 24'' Wide Undercounter ADA Height Drawer Refrigerator - ASDR2414PNR Summit


Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.Model ASDR2414PNR is a 24'' wide 2-drawer refrigerator sized under 18'' deep. It comes in a 32'' height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34'' to fit standard counter spaces. The drawer fronts are fully finished in stainless steel, but can also accept panel overlays for a custom look (panel dimensions: 23.43'' W x 14.1'' H at 3/4'' thick). Sleek stainless steel handles are included for optional use. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit.Inside, the ASDR2414PNR has a generous 3.1 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers allow you to separate the drawer compartments for easy organization. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ASDR2414PNR refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18'' deep choices are available in a variety of styles, including 15'', 19'', and 24'' widths, as well as outdoor refrigerators, wine cellars, and more.
Overview

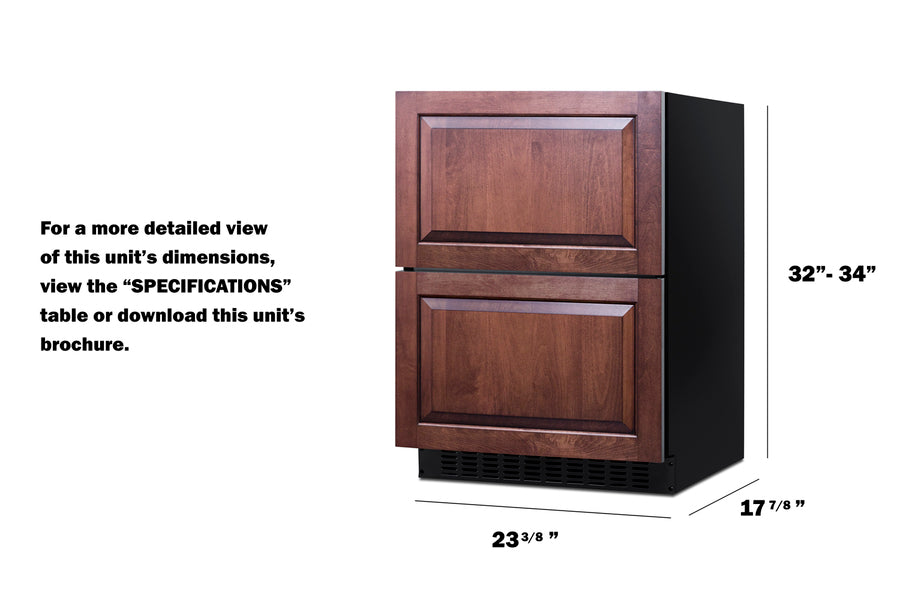

Height of Cabinet 32.0'' (81 cm) Width 23.38'' (59 cm) Depth 17.88'' (45 cm) Depth with Handle 19.0'' (48 cm) Depth with door at 90° 29.63'' (75 cm) Capacity 3.1 cu.ft. (88 L) Defrost Type Frost-Free Door Stainless Steel/Panel-Ready Cabinet Black US Electrical Safety ETL Canadian Electrical Safety ETL-C Sanitation ETL-S Energy Usage/Year 285.0kWh/year Amps 1.0 Voltage/Frequency 115 V AC/60 Hz Weight 106.0 lbs. (48 kg) Shipping Weight 150.0 lbs. (68 kg) Parts & Labor Warranty 1 Year Compressor Warranty 5 Years UPC 761101088938
Refrigerator Features
Sabbath Mode Yes Door Swing Drawer Height Adjustable Yes Thermostat Type Digital Fan Type Interior and Exterior Refrigerant Type R600a Refrigerant Amount 1.38oz. High Side PSI 270.0 Low Side PSI 105.0 Level Legs Qty 4 Interior Light Yes Temperature Range 36 to 43ºF Sound Level 33 dB
Drawer Dimensions
Interior Height 1 8.0'' (20 cm) Interior Width 1 17.63'' (45 cm) Interior Depth 1 11.25'' (29 cm) Interior Height 2 8.0'' (20 cm) Interior Width 2 17.63'' (45 cm) Interior Depth 2 11.25'' (29 cm)
Dimensions
Compressor Step Height 3.75'' (10 cm) Compressor Step Width 17.63'' (45 cm) Compressor Step Depth 4.75'' (12 cm)
2-Drawer All-Refrigerator

24'' wide 3.1 cu.ft. all-refrigerator with two gliding drawers

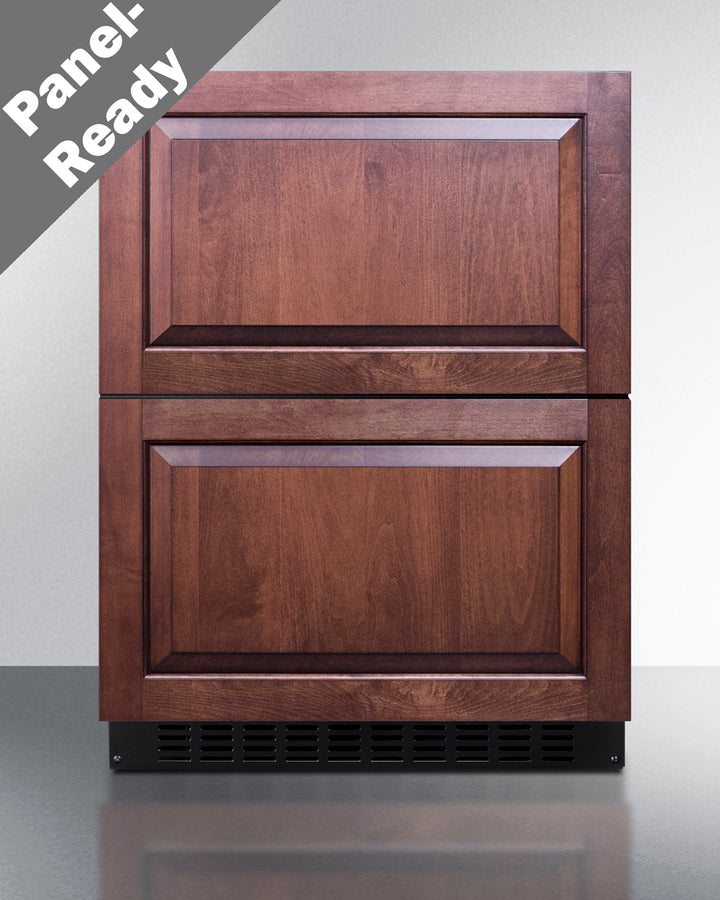

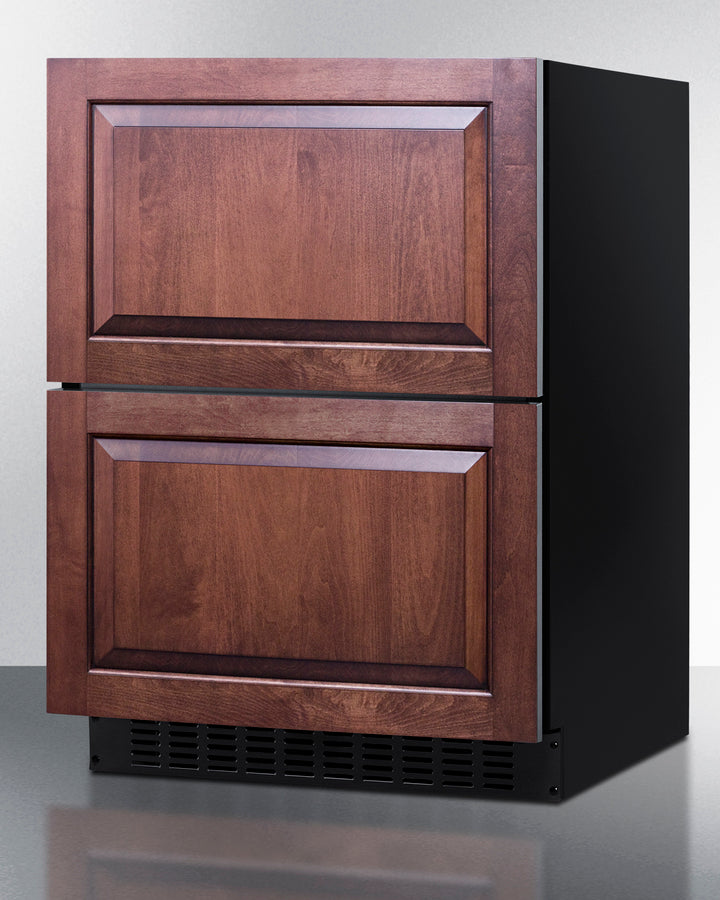

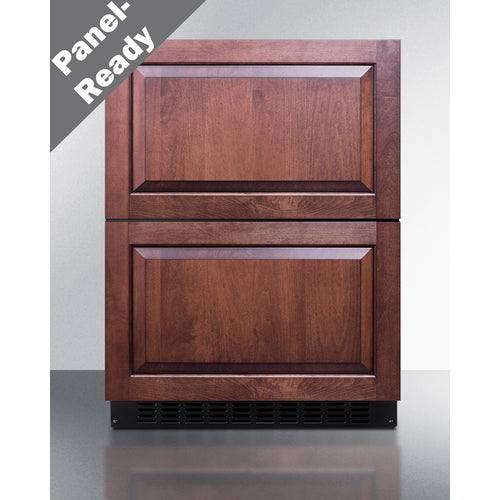

Panel-ready drawer fronts

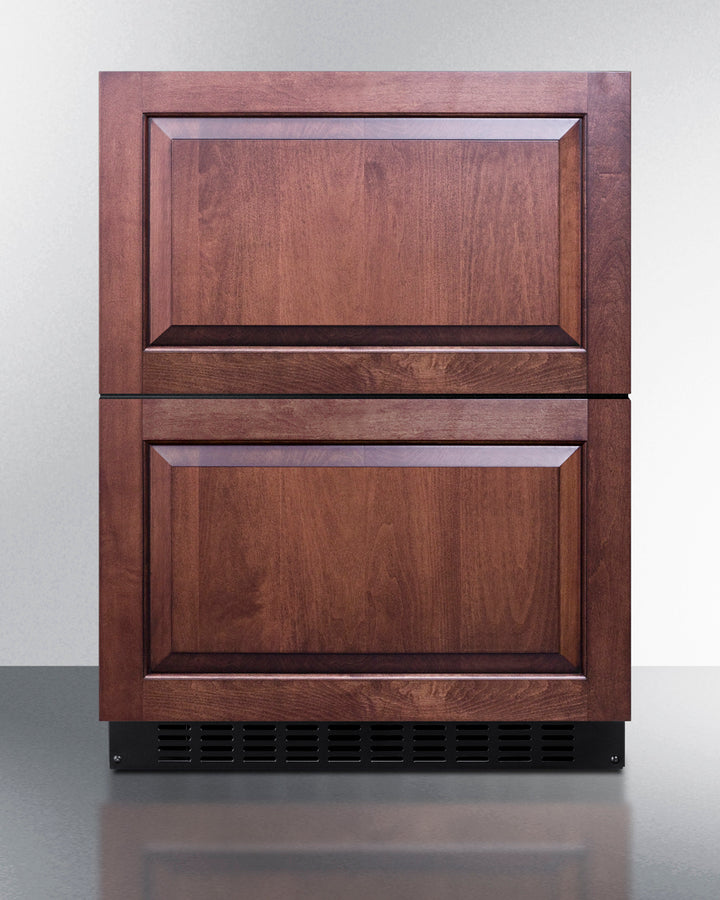

Drawers accept overlay panels (size: 23.43'' x 14.1'' at 3/4'' thick) to let you seamlessly blend the refrigerator into cabinetry design

Less than 18'' deep

Unique 17.88'' shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design

Sized just under 32'' high to allow installation under lower ADA compliant counters

Adjustable height

Leveling legs can be extended up to 2'', with a slide-out kickplate that allows you to raise the overall height from 32'' up to 34'' if used under more standard sized cabinets

Built-in capable

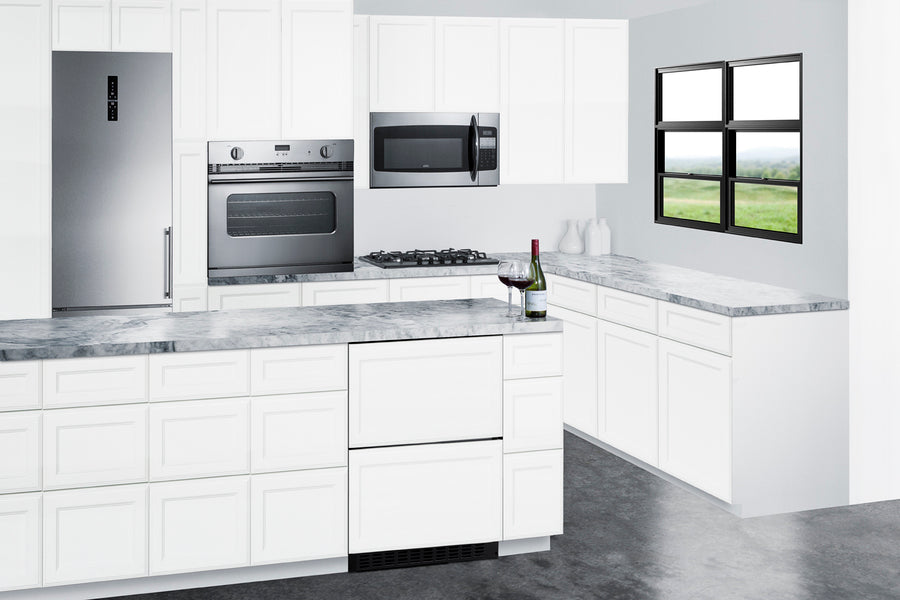

Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24'' wide openings

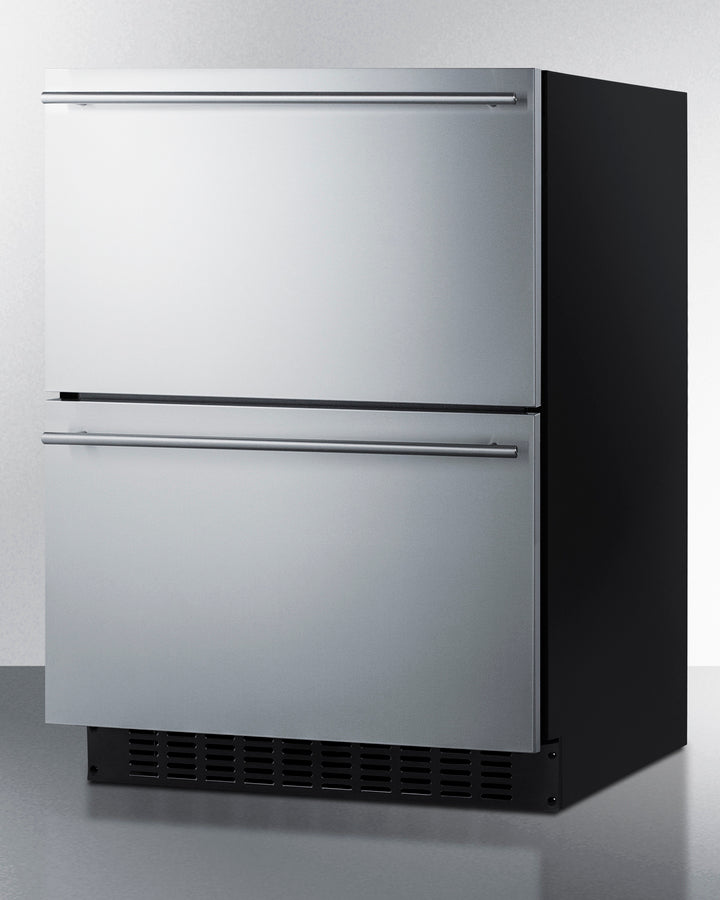

Stainless steel drawers

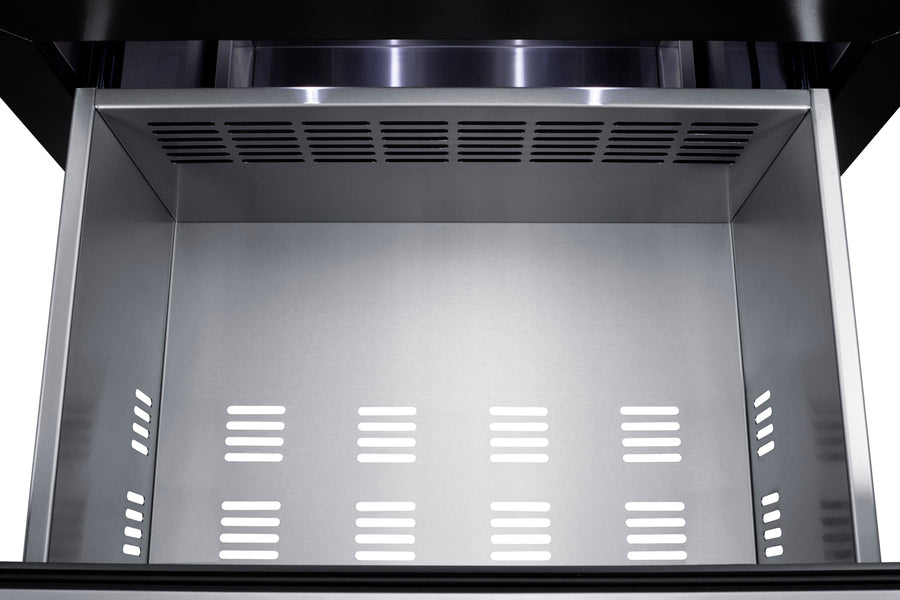

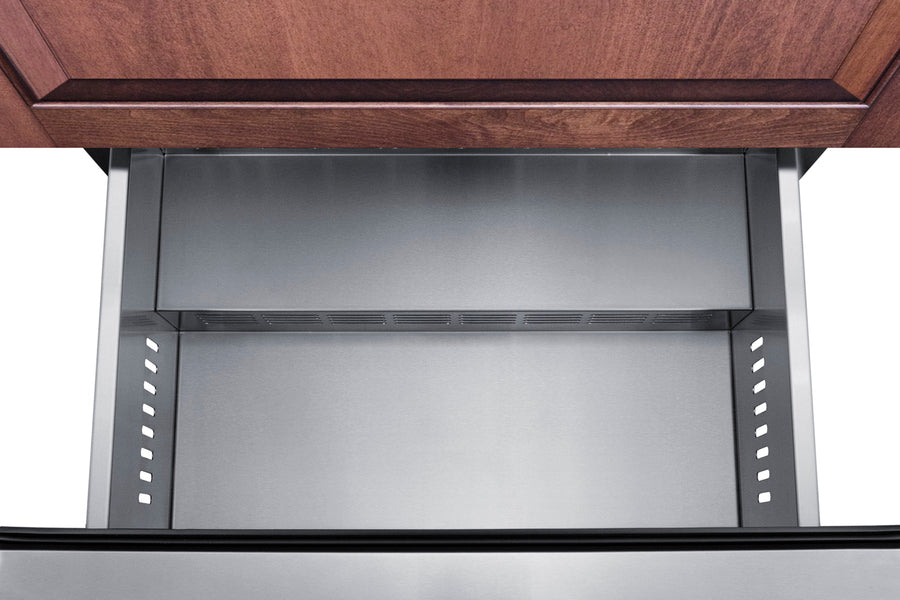

Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for lasting durability with a finished front for an elegant look

Professional handles

Sleek stainless steel handles add an elegant touch to any setting

Frost-free

No-frost operation for minimum user maintenance

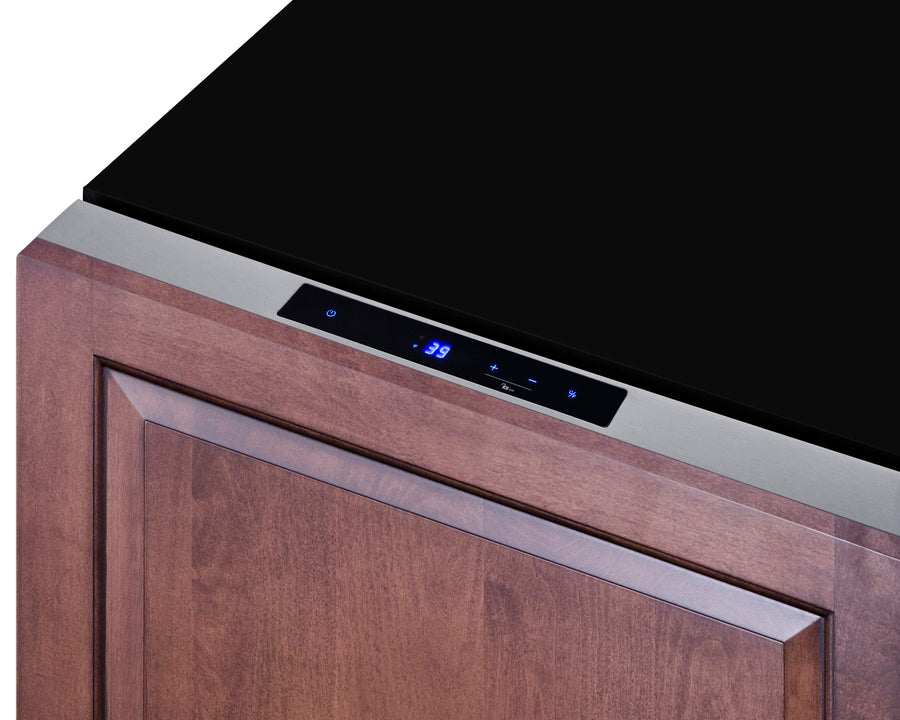

Digital thermostat

Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

Interior lighting

Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior

Fan-forced cooling

Provides for efficient, even cooling of the entire unit

Drawer dividers

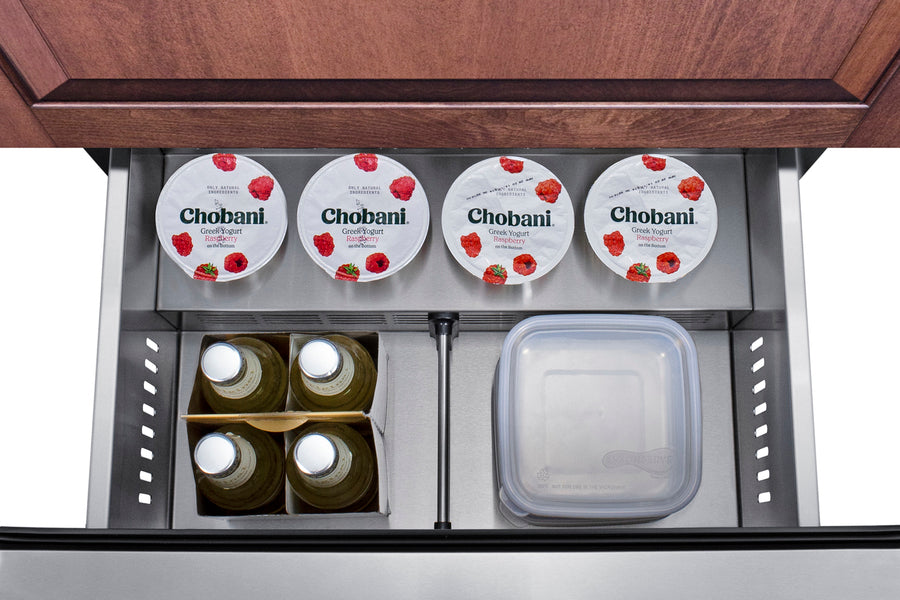

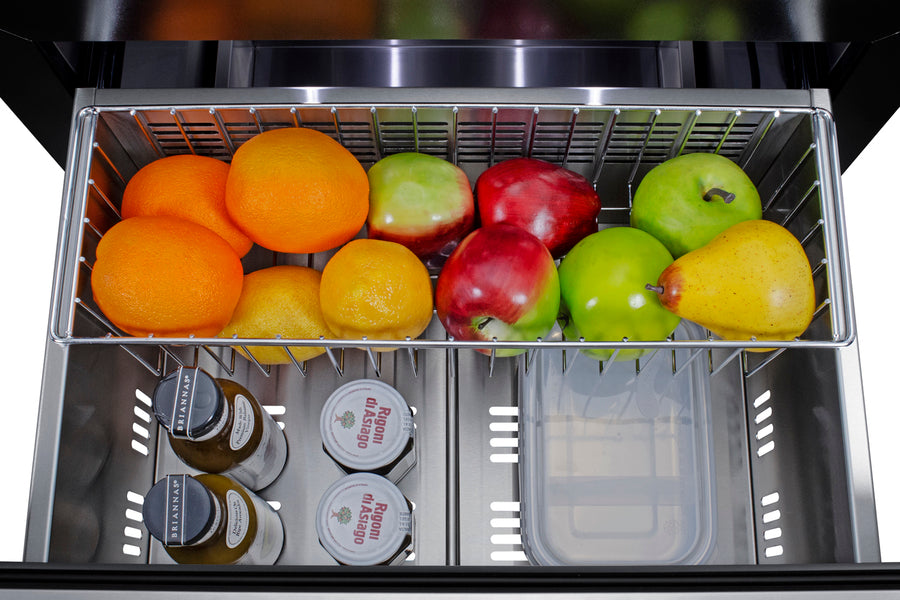

Two adjustable dividers provide flexibility when organizing the interiors

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm

Audible alarm will sound if either drawer is left open longer than one minute

Sabbath mode

Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Child lock

Disables digital controls after two minutes of activity for added safety

Temperature memory function

Unit will restore the most recent temperature settings after losing power

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils for easier cleanability

Fully finished black exterior cabinet

Allows the unit to be used freestanding

Anti-tip bracket

Included and recommended for user-installation to reduce the risk of tipping

Commercially approved

ETL-S listed to NSF-7 standards to allow use in commercial establishments

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
